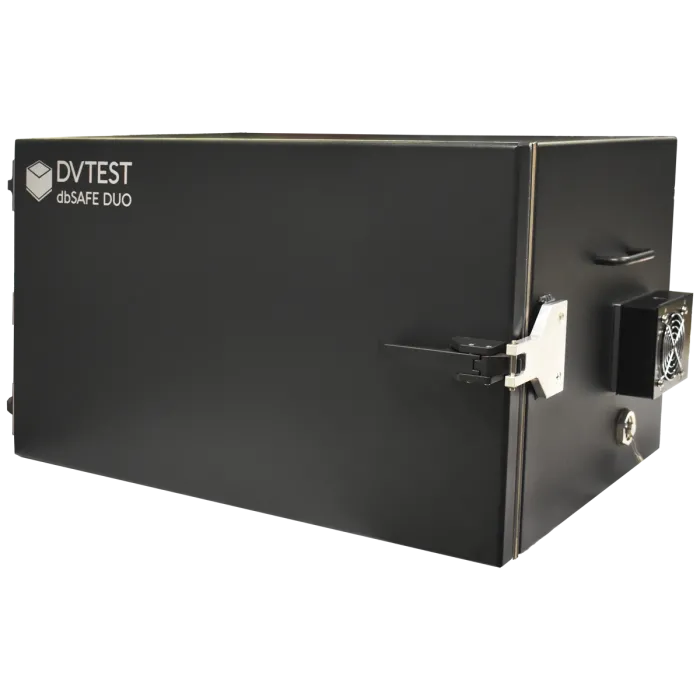

RF Test Enclosure, ≥100 dB of isolation, 300 MHz - 18 GHz
RF enclosures are now a necessity for testing wireless devices. The dbSAFE DUO offers unmatched isolation in its class; up to 100 dB* from 300 MHz to 18 GHz. The dbSAFE DUO shielded box has been engineered from the ground up to provide superior RF isolation and performance while being cost-effective. The dbSAFE DUO can be designed and manufactured to almost any size and dimensions.
Shielding Effectiveness (dB)
300 MHz - 3 GHz ≥ 100 dB, 3 GHz - 6 GHz ≥ 90 dB, 6 GHz - 18 GHz ≥ 80 dB
Double Wall Welded Aluminium Structure
Tri-Shield© coated to MIL-DTL-5541F
Extruded Aluminium Trolley
Dual Layer Braid Over Foam
Broadband Lossy Foam Absorber
Internal Dimensions (WxDxH)
24" x 15" x 13"
External Dimensions (WxDxH)
26.5" x 17.5" x 15.5"
